0–5.5 t

Drainage Bucket HD

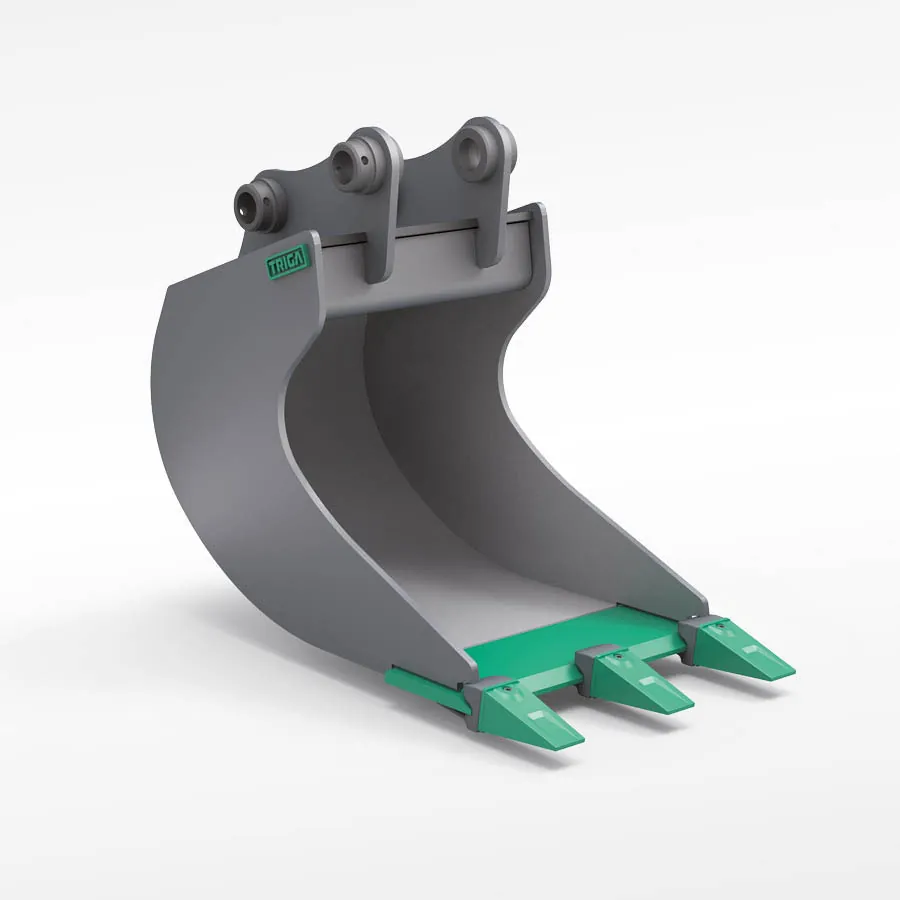

Name: Drainage Bucket HD - TRIGA
SKU: 1+D - HD - 1 - 250+
Availability: InStock

The drainage bucket D for heavy-duty conditions can be used for digging narrow drainage ditches as well as for laying cables, pipes, etc.

Types of work:

Working conditions: HD

Quick release design:

Rotation:

GD — NORMAL CONDITIONS

HD — DIFFICULT CONDITIONS

SD — CHALLENGING CONDITIONS

XD — EXTREME CONDITIONS

Class	Commercial code	Width (mm)	Volume (l)	Working conditions
1	D – HD – 1 – 250	250	22	HD
1	D – HD – 1 – 300	300	28	HD
1	D – HD – 1 – 400	400	40	HD
1	D – HD – 1 – 500	500	52	HD
1	D – HD – 1 – 600	600	64	HD
2	D – HD – 2 – 250	250	33	HD
2	D – HD – 2 – 300	300	42	HD
2	D – HD – 2 – 400	400	61	HD
2	D – HD – 2 – 500	500	79	HD
2	D – HD – 2 – 600	600	98	HD
2	D – HD – 2 – 700	700	117	HD
3	D – HD – 3 – 300	300	54	HD
3	D – HD – 3 – 400	400	78	HD
3	D – HD – 3 – 500	500	103	HD
3	D – HD – 3 – 600	600	129	HD
3	D – HD – 3 – 700	700	155	HD
3	D – HD – 3 – 800	800	180	HD
4	D – HD – 4 – 300	300	68	HD
4	D – HD – 4 – 400	400	99	HD
4	D – HD – 4 – 500	500	131	HD
4	D – HD – 4 – 600	600	164	HD
4	D – HD – 4 – 700	700	198	HD
4	D – HD – 4 – 800	800	232	HD
4	D – HD – 4 – 900	900	266	HD
